►Equipment parameters：
| Equipment model | Pallet size | Effective area of pallets | Forming height | Forming cycle | The net weight of the host is approximately | Host power |
| 9-15 | 1400×750mm | 1300×700mm | 50-400mm | 15-20Second/Time | 13T | 30kw |
|
Standard brick 240×115×53mm |
Bread brick 200×100×60mm |
Hollow bricks 390×190×190mm |
PC imitation stone brick 600×300×600mm |
||||
| Number of pieces per board | 10 hour production | Number of pieces per board | 10 hour production | Number of pieces per board | 10 hour production | Number of pieces per board | 10 hour production |
| 55 | 99000 piece | 36 | 64800 piece | 9 | 16200 piece | 4 | 7200 piece |

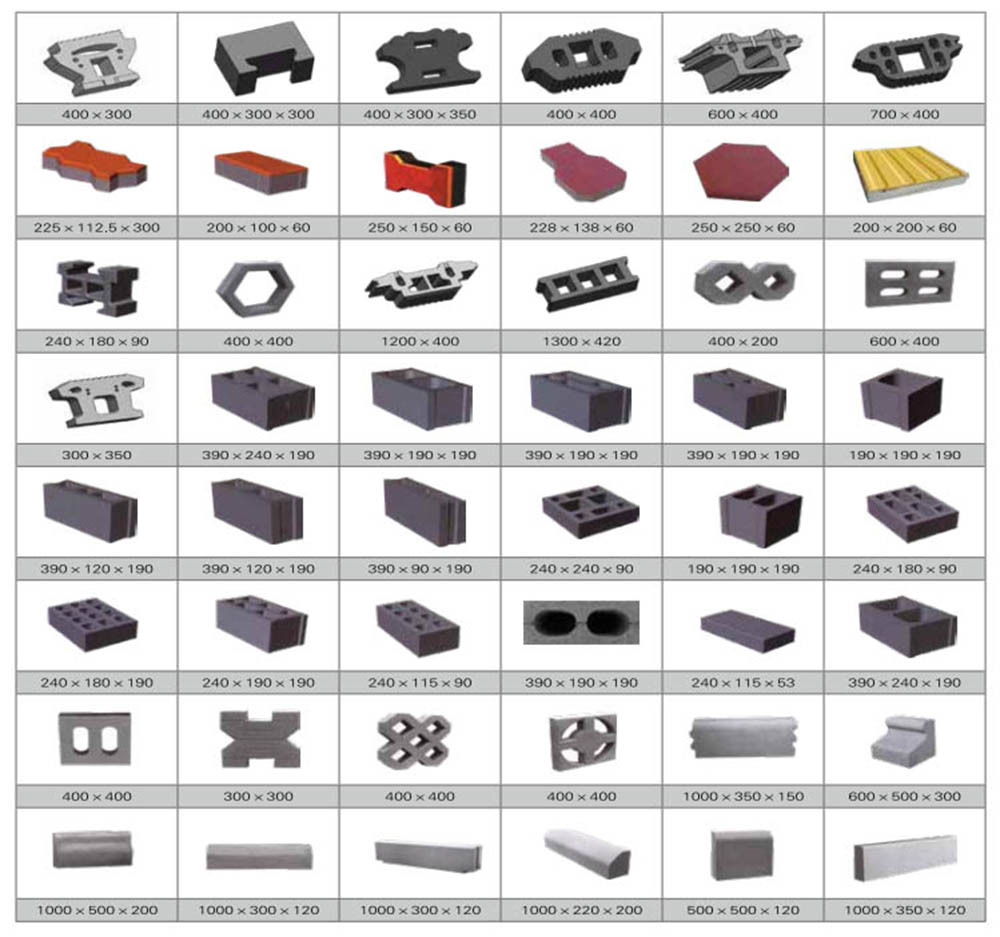

BRICK TYPE DISPLAY

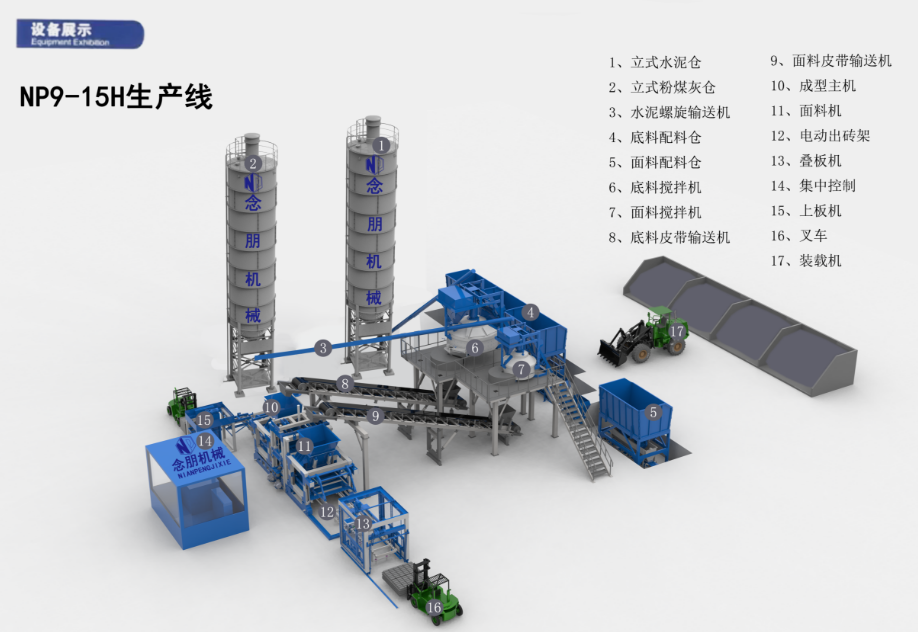

| NPQT 9-15H production line | |||
| 1. Vertical cement silo | 2. Vertical fly ash silo | 3. Cement screw conveyor | 4. Aggregate material batching bin |
| 5. Fabric material batching bin | 6. Aggregate material mixer | 7. Fabric material mixer | 8. Aggregate material belt conveyor |
| 9. Fabric material belt conveyor | 10. Forming host machine | 11. Fabric machine | 12. Electric brick-outlet rack |
| 13. Stacking machine | 14. Centralized control room | 15. Pallets loading machine | 16. Forklift |
| 17. Materials loading forklift | |||

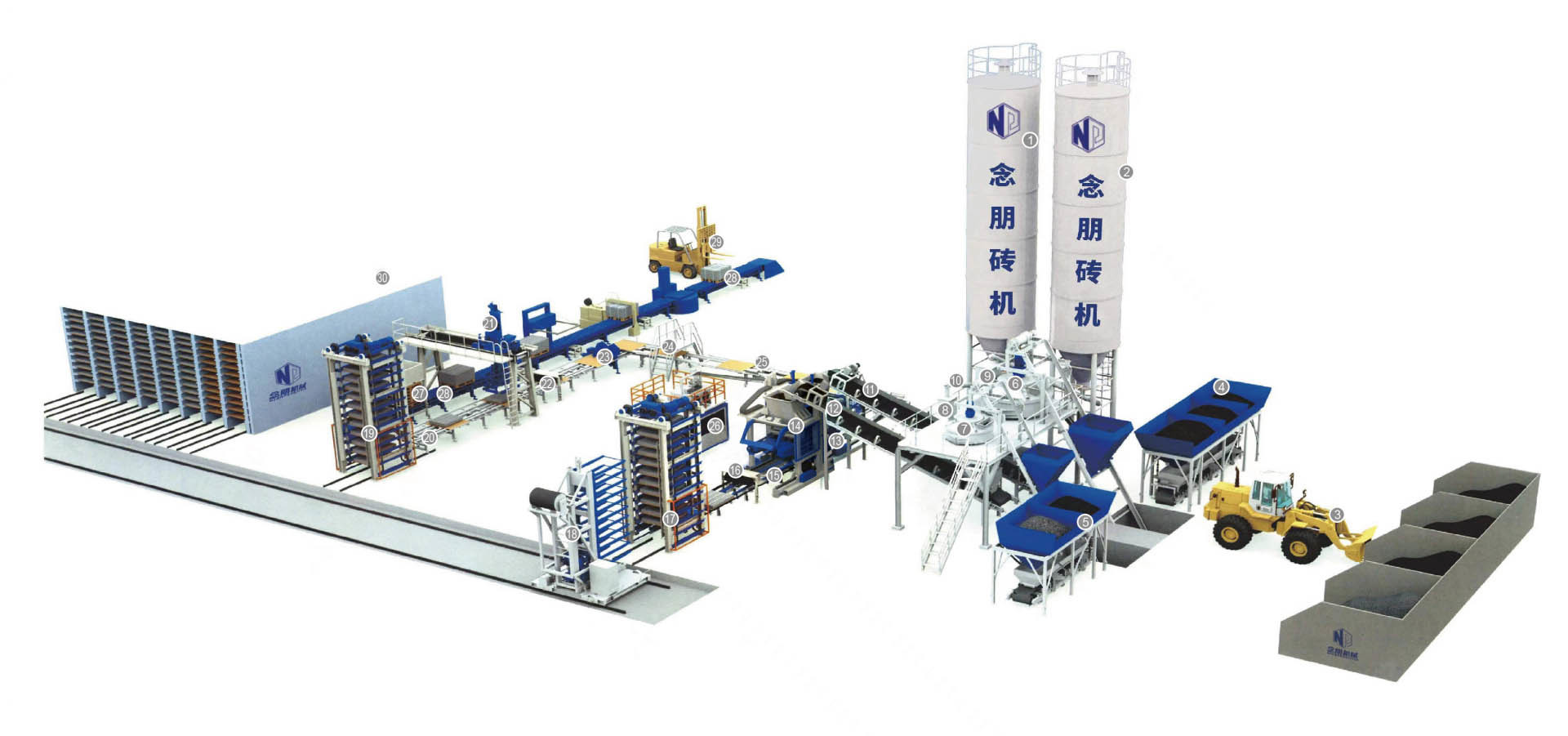

| NPQT 9-15S production line | |||
| 1. Cement silo | 2. Fly ash silo | 3. Materials loading forklift | 4. Aggregate material batching machine with 3 bins |
| 5. Fabric material batching machine with 2 bins | 6. Aggregate material planetary mixer | 7. Fabric material planetary mixer | 8. Mixing platform |
| 9. Cement screw conveyor | 10. Fly ash screw conveyor | 11. Aggregate material belt conveyor | 12. Fabric material belt conveyor |
| 13. Forming host machine | 14. Fabric material machine | 15. Wet products conveyor | 16. Automatic cleaning roller brush |
| 17. Pallets lifting machine | 18. Programmable shuttle bus | 19. Pallets declining machine | 20. Pallets declining pitch machine |
| 21. High position bricks stacking machine | 22. Pallets brush | 23. Pallets flipping machine | 24. Bridge crossing ladder |
| 25. Horizontal pitch machine | 26. Centralized control system | 27. Pallets loading machine | 28. Plate type finished products conveyor |
| 29. Transfer forklift | 30. Maintenance Kiln | ||

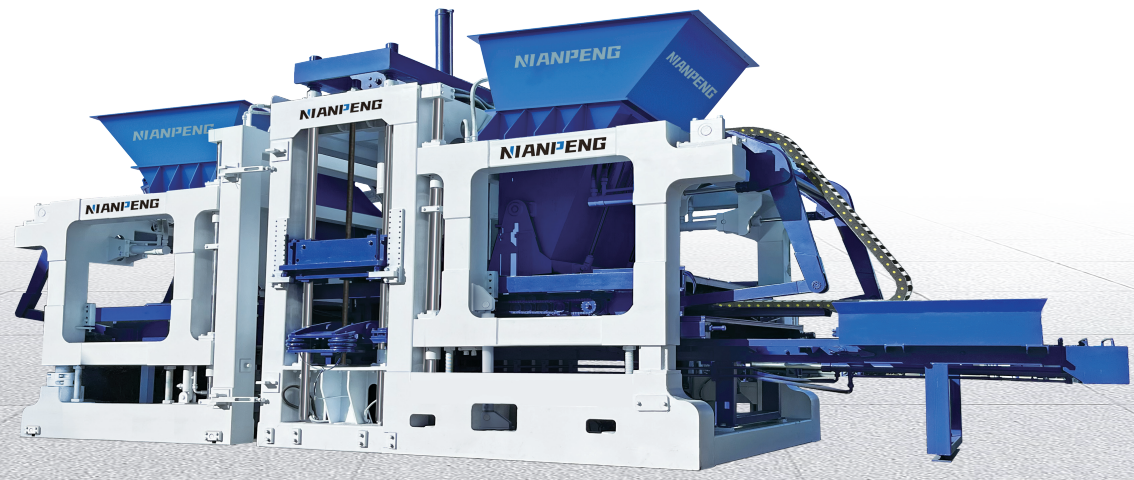

Keyword: 9-15Full-automatic Brick Making Machine
Category:
brick making machine
