NP QT12-15A BRICK MACHINE FEATURES

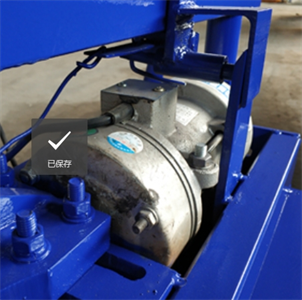

1. The excitation system is the core part, according to the principle of mechanical resonance centrifugal force, the introduction of German technology to achieve full synchronization, full isolation, directional vibration pressure, with large vibration force, start quickly, smooth operation and other advantages, in the leading level in China;
2. The hydraulic control system adopts imported high-frequency proportional valve, which can automatically adjust the flow rate during production process, so that the cylinder can be protected, enable the cylinder to have a buffering effect on the forward and backward endpoints, thereby improving the stability, extending the service life of the cylinder, and improving the speed and flexibility of various parts movements;
3. Through the security logic control, the fault diagnosis, text alarm and other prompt functions are added to the program control, when there is misoperation, the fault can be accurately diagnosed;
4. The machine is simple to operate, with high efficiency, energy saving, economic, practical and other characteristics.
Equipment parameters |
|
Host Machine Powel |
38.2kW |
Host Machine Weight |
10 tons |
Dimension |
5400*2250×2740mm |
Pallet Size |
1280×900*(25-40)mm |
Molding Cyclel |
15-20 sec/time |
Excitating Force |
118kN |
Production Capacity |
41.04 million pcs/year(240×115×53mm) |
Operation Standard |
JC/T2094-2021 |
Paving Stone Series |
![]() |
Hollow Block Series |
![]() |
Professional production of unburned brick machine
![]() |
![]() |
![]() |
Bread brick | Holland brick | Pavement bricks |
Cement brick is a new wall material made of fly ash, coal slaggangue,tailings slag, chemicalslag or natural sand, seashoremud,etc.(one or several ofthe above raw materials) as mainraw materials, cement as solidifying agent, without calcinationat high temperature.
